CONTINUOUS BIOMASS CARBONIZATION PROJECT 3T/H LOADING CAPACITY INCLUDE:
1. Crusher
The biomass grinder adopts blade cutting and high-speed airflow impact, and the collision and double shredding functions are integrated, and can simultaneously complete the micro-material sorting and processing process. In the process of blade cutting and pulverization, the rotor generates high-speed airflow, which rotates with the cutting direction of the blade, and the material is accelerated in the airflow, and the repeated impact causes the material to be double-pulverized at the same time, which accelerates the pulverization rate of the material.
2. Drying system
.png)
1. The material enters the inner layer of the rotary drum from the feeding device to achieve downstream drying. The material is continuously picked up and scattered under the inner layer of the copy plate to achieve heat exchange in a spiral manner. After, it moves to the other end of the inner layer to enter In the middle layer, countercurrent drying is carried out. It is continuously raised in the middle layer, showing a two-step forward and one-step travel mode. After the drying time, the material reaches the best dry state here.
2. The material travels in the outer drum in a rectangular multi-loop manner. The material that achieves the drying effect quickly spreads out of the drum under the action of hot air, and the wet material that does not achieve the drying effect is caused by its own weight. Can not move fast, the material is fully dried in this rectangular copy board, thus achieving the purpose of drying.
3. Continuous carbonization system with auto loading and discharging system capacity
Carbonization raw material:
.png)

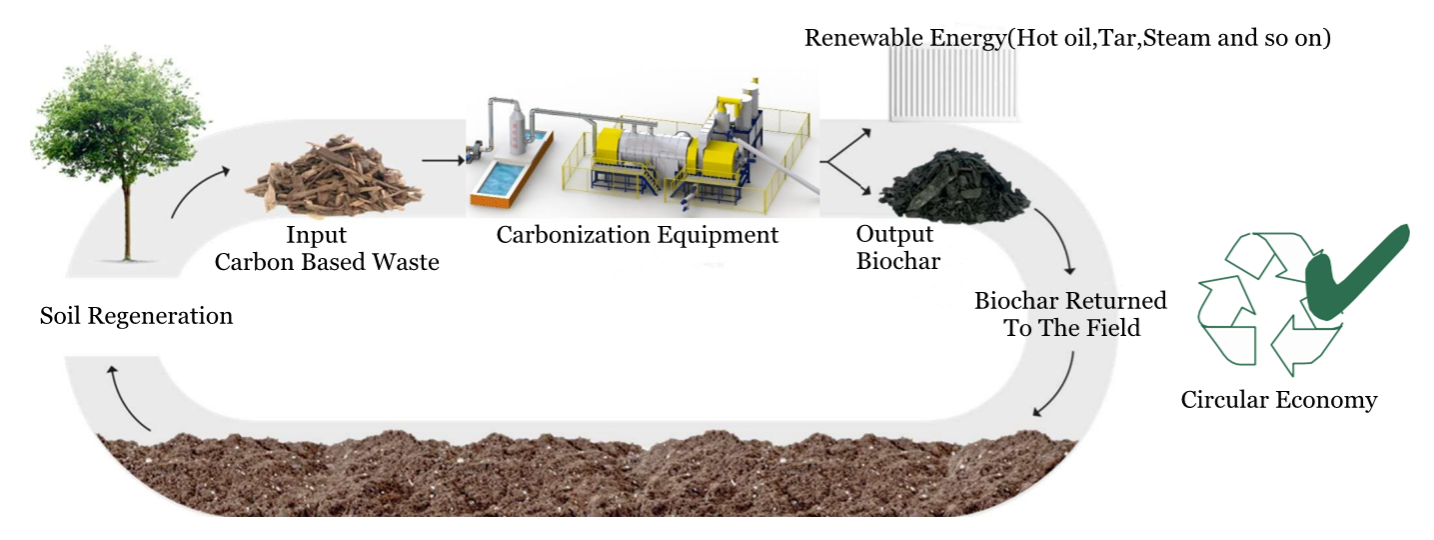

Realize the recycling of biomass energy:
.png)
4. Charcoal briquette making machine
1. Design for production line flow and equipment layout freely according to the site.
2. Supply the foundation drawing of equipment.
3. Supply the technical parameters of peripheral equipment.
4. During the operation, we can offer the technology service freely if the user needs to adjust the layout and application.
5. During the operation, we only collect the cost if the user willing to upgrade the equipment when we have the advantage technology.
5. Auto biochar packing machine
FINAL PRODUCT OBTAINED:
|
Charcoal |
Biogas |
Tar |
Vinegar |
|
BBQ or used as fuel in other area Attach heavy metal, improve the quality of soil Can be reprocessed into activated carbon Used for construction
|
Widely used as fuel Greenhouse agriculture heating Can be used for drying Can be used as a generator to get electricity
|
Anti-insect fungicide Pesticide neutralization Soil conditioners
|
Used as permeability-reducing agent for construction |
REMARKS:
Floor area: 40x30x6 meters.
Natural gas consumption: initial heating 80-100m3 water consumption 1.2-1.8m3 per day
Carbonization plant price: Contact Us
